PVC Compounds for Extrusion: Processing Guide and Key Applications

For plastic product manufacturers, the efficiency of extrusion processing depends heavily on one critical factor: the material formulation. Whether you are producing pipes, profiles, cables, sheets, or complex injection-molded parts, choosing the right PVC compound for extrusion directly affects production stability, final product quality, and overall waste reduction.



A well-formulated PVC extrusion compound is not simply a mixture of PVC resin and additives. It is a ready-to-use material system designed with selected stabilizers, lubricants, processing aids, impact modifiers, colorants, and other functional ingredients. When properly formulated, these compounds help manufacturers achieve consistent output, smooth surface finish, and reliable mechanical performance.



Unlike raw PVC resin, which often requires extensive on-site compounding and testing, finished PVC extrusion compounds are engineered to reduce trial-and-error during production. They can shorten setup time, improve batch-to-batch consistency, and simplify material handling on the factory floor.

Understanding PVC Compounds for Extrusion

PVC extrusion compounds are developed to meet specific processing and performance requirements. Their formulation determines how easily the material flows through the extruder, how well it retains its shape after exiting the die, and how it performs in the final application.



A typical PVC extrusion compound consists of:



• PVC resin as the base polymer



• Heat stabilizers to prevent thermal degradation during processing



• Lubricants to reduce friction between polymer molecules and equipment surfaces



• Processing aids to improve melt flow and surface smoothness



• Impact modifiers to enhance toughness, especially in rigid PVC products



• Colorants for consistent coloring across production batches



• Special additives for UV resistance, flame retardancy, or low-temperature performance



The advantage of using pre-compounded PVC is that these ingredients are carefully balanced in a laboratory setting. This reduces the risk of formulation errors and helps maintain consistent quality across large production runs.

Why PVC Compounds Are Suitable for Extrusion



Extrusion is a continuous manufacturing process that requires stable melt behavior, consistent die pressure, and reliable post-die shaping. PVC compounds are particularly suitable for this process because they can be adjusted to achieve very specific processing characteristics.



Controlled Processing Behavior



PVC compounds can be formulated to offer controlled plastication, stable melt viscosity, and uniform die swell. This balance helps manufacturers maintain consistent output rates, reduce surface defects, and minimize dimensional variation in finished products.



For example, rigid PVC window profiles require high dimensional stability and low post-extrusion shrinkage. By contrast, flexible PVC cables need good flame resistance, electrical insulation, and smooth coating ability. In both cases, compound formulation determines whether the extrusion process will run smoothly or encounter frequent adjustments.



Formulated for Thermal Processing



One of the most important properties of PVC extrusion compounds is thermal stability. PVC is sensitive to high temperatures and can degrade if exposed to excessive heat or prolonged processing time. For this reason, stabilizer systems are carefully selected to protect the material during extrusion.



Effective thermal stabilization helps prevent:



• Discoloration during processing



• Melt fracture



• Poor surface finish



• Degraded mechanical properties



• Unplanned machine shutdowns



This is especially critical in long production runs, where even small formulation weaknesses can lead to large volumes of rejected material.



Properties Matched to the End Product



Different extrusion applications require different material properties. A PVC compound designed for water pipes will not necessarily perform well in cable insulation, flooring, or medical tubing. Therefore, compounders adjust formulations based on the intended use.



Rigid PVC Compounds



Rigid PVC compounds are used where stiffness, dimensional accuracy, and long-term durability are required. They are commonly found in construction products such as window profiles, door frames, wall panels, pipes, and rigid sheets.



Typical properties include:



• High tensile strength



• Good impact resistance



• Low shrinkage



• Weatherability



• Chemical resistance



• Consistent dimensional control



Flexible PVC Compounds



Flexible PVC compounds are formulated with plasticizers to increase flexibility, softness, and elasticity. They are widely used in wire and cable insulation, hoses, seals, gaskets, films, and flexible profiles.



Typical properties include:



• Good flexibility



• Low-temperature performance



• Flame resistance



• Electrical insulation



• Abrasion resistance



• Compatibility with continuous extrusion



Transparent Rigid PVC Compounds



Transparent PVC compounds require careful selection of raw materials, formulation compatibility, and precise processing control. Even small inconsistencies in heat, shear, or die pressure can affect clarity, leading to haziness, poor fusion, or surface defects.



For transparent products, material cleanliness and stable temperature control are especially important. Manufacturers must ensure that the compound remains homogeneous throughout the extrusion process.

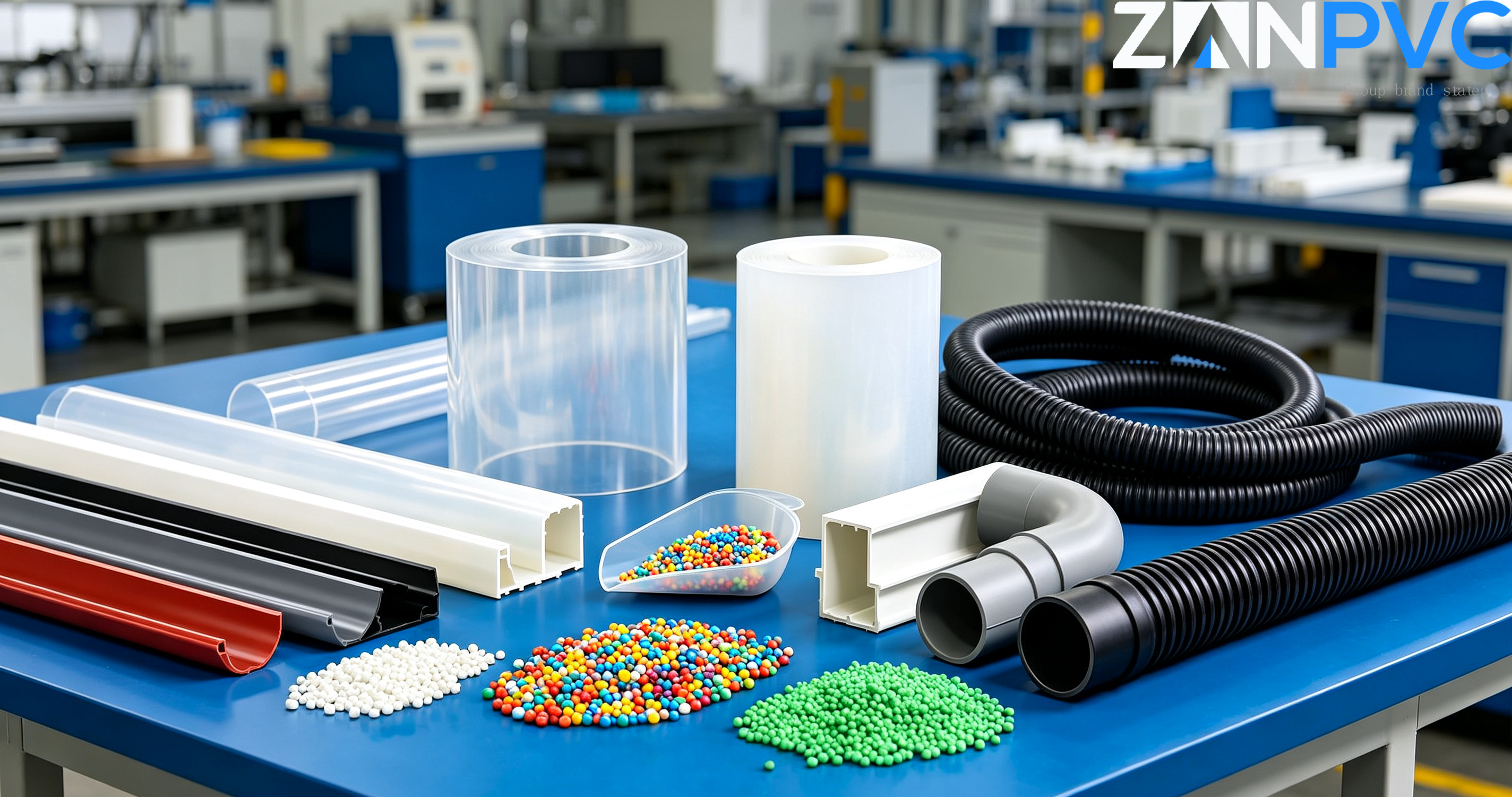

Typical Applications of PVC Extrusion Compounds



PVC extrusion compounds are used across a wide range of industries. Their versatility makes them suitable for both general-purpose and highly specialized applications.

Building and Construction



The construction sector remains one of the largest consumers of PVC extrusion compounds. Rigid PVC is widely used because of its weatherability, stiffness, and long service life.



Common examples include:



• Water supply and drainage pipes



• Electrical conduits



• Cable trunking



• Window and door profiles



• Wall panels



• Decorative trim



• Rigid sheets



• Transparent or opaque tubing



These products require consistent mechanical strength, dimensional stability, and resistance to environmental factors such as moisture, temperature changes, and UV exposure.

Wire and Cable



Flexible PVC compounds are commonly used for insulation and sheathing in wire and cable applications. The formulation can be adjusted to meet different hardness levels, electrical performance requirements, and flame-retardant standards.



Typical products include:



• Building wire insulation



• Power cable sheaths



• Control cables



• Automotive wiring



• Flexible cords



• Cable trunking and ducting



In this sector, material safety is particularly important. Cable compounds must meet relevant industry standards for flame resistance, smoke emission, and electrical insulation.



Industrial and Consumer Products



PVC extrusion compounds are also used in many industrial and everyday products. Their ability to be formulated into rigid, flexible, or transparent versions makes them suitable for diverse production needs.



Examples include:



• Flexible hoses



• Transparent tubing



• Sealing strips



• Edge bands



• Protective profiles



• Flexible sheets



• Furniture trims



• Cable management components



Each application may require different hardness, clarity, flexibility, or chemical resistance. This is why custom compound development is often necessary.



PVC Extrusion Process: Best Practices



To get the best results from PVC extrusion compounds, manufacturers should follow proven processing guidelines. Small improvements in material handling, temperature control, die setup, and cooling can significantly reduce defects.

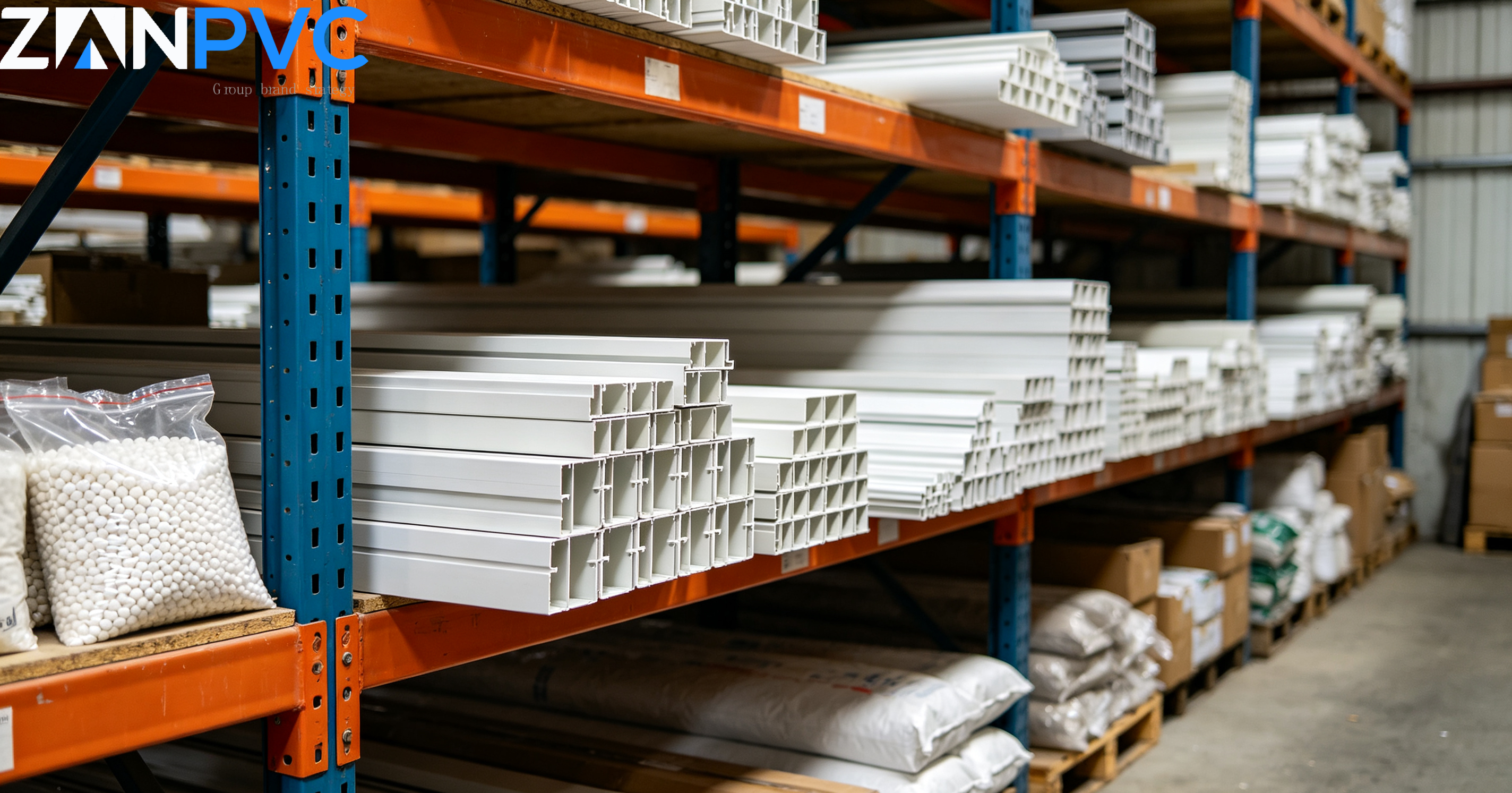

Material Handling



Store PVC compounds in a clean, dry environment to prevent contamination and moisture absorption. Most PVC pellet compounds do not require routine drying, but materials exposed to high humidity should be checked and conditioned before processing.



It is also important to avoid mixing different batches or formulations without proper identification. Contamination can cause surface defects, discoloration, or inconsistent fusion.

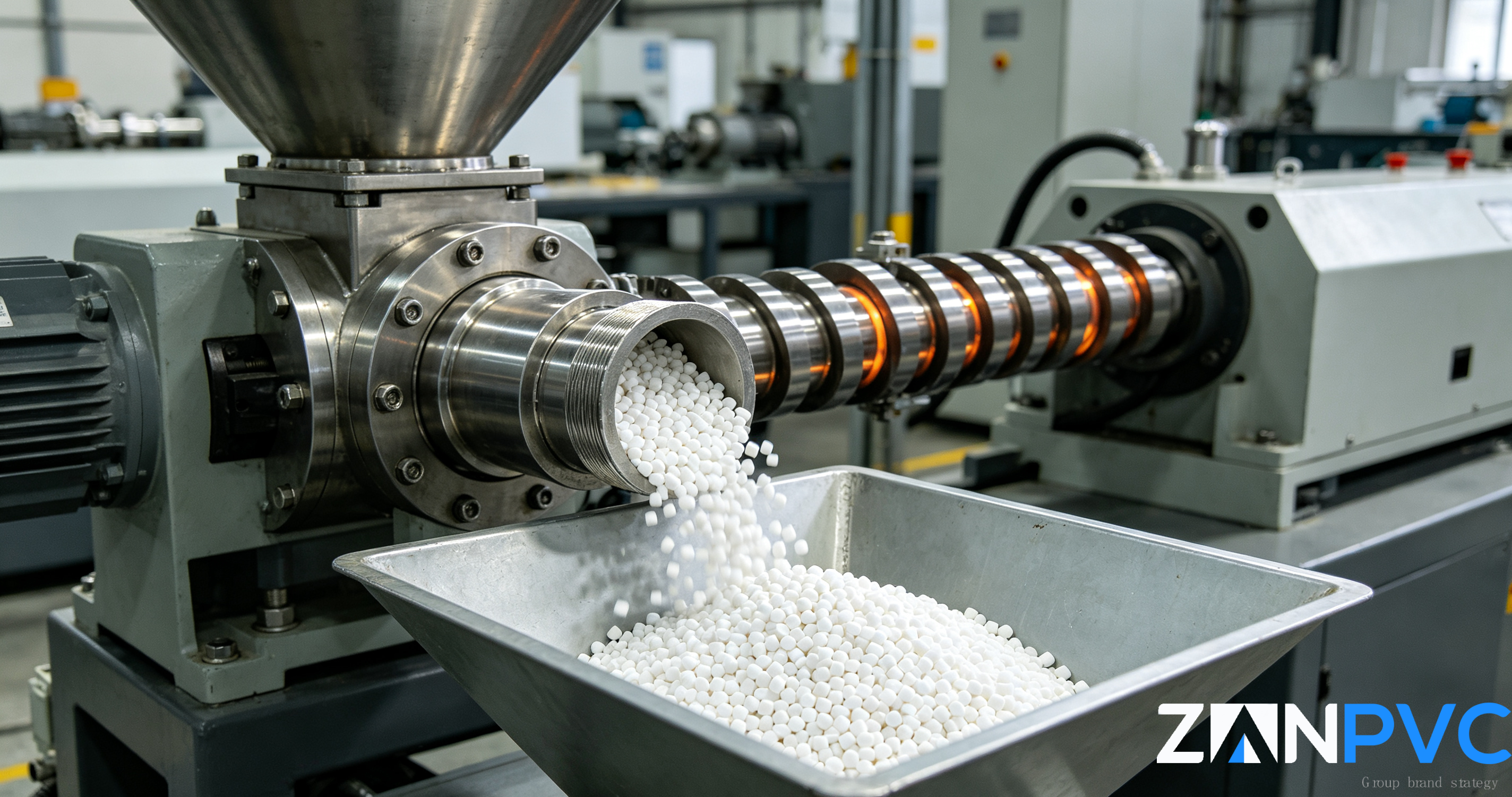

Fusion and Temperature Control



Set temperatures, screw speed, and output rate to achieve uniform fusion without overheating the material. Low temperatures may cause poor plasticization, while excessive heat can lead to discoloration, degradation, or die lines.



Recommended practices include:



• Gradually increase barrel temperature from feed zone to die zone



• Monitor melt temperature closely



• Adjust screw speed based on motor load and melt quality



• Avoid long residence times at high temperatures



• Keep temperature settings consistent during production runs



Die and Calibration Control



Keep the die clean and maintain stable melt pressure. Die lip settings, vacuum calibration, and haul-off speed should be matched to the product design. Proper calibration helps ensure uniform wall thickness, correct profile shape, and final dimensional accuracy.



For complex profiles, even small die adjustments can affect the final result. Operators should make one adjustment at a time and allow the process to stabilize before making further changes.

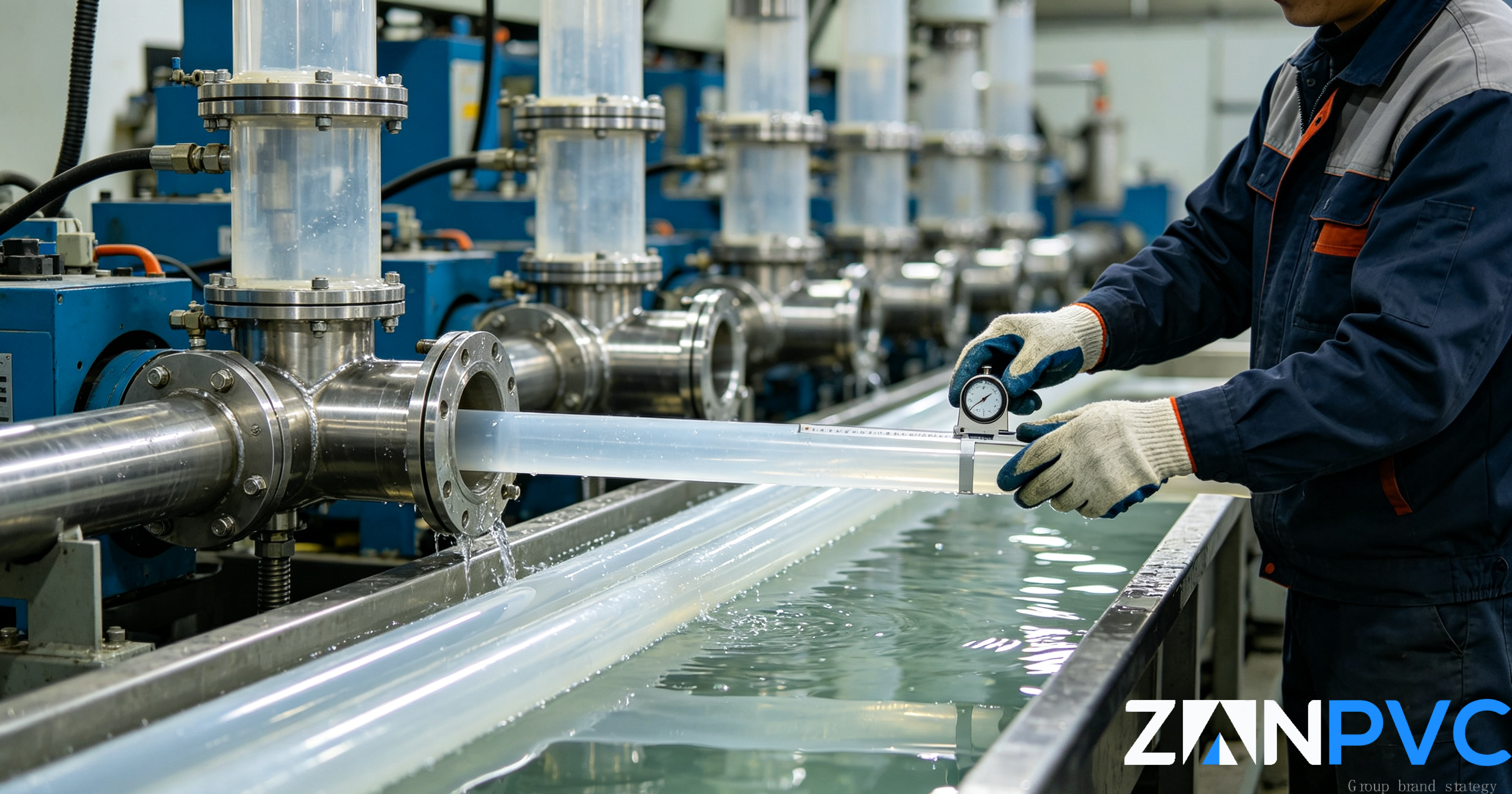

Cooling and Haul-Off



Use uniform cooling and stable haul-off speed to prevent warpage, uneven shrinkage, and dimensional variation. Molded or extruded profiles must be cooled evenly so that they retain their intended shape.



This is especially important for thin-wall products, large profiles, and transparent materials, where uneven cooling can cause internal stress or surface distortion.

Troubleshooting Common PVC Extrusion Issues



Even with high-quality compounds, extrusion problems can occur. The key is to identify whether the issue comes from material formulation, machine settings, processing conditions, or equipment maintenance.





For effective troubleshooting, change one variable at a time and record the result. A structured approach to material condition, temperature, pressure, screw speed, line speed, cooling, and haul-off conditions will make it easier to identify the root cause.



Final Notes



PVC extrusion compounds play a central role in determining product quality, processing stability, and manufacturing efficiency. The right compound can help manufacturers achieve smoother production, fewer defects, and more consistent final products.



If you are developing a new PVC extrusion product or looking to improve an existing formulation, working with an experienced compound supplier can save significant time and cost. A supplier who understands both material formulation and processing behavior can help match the compound to your specific application.
