PVC Compound Uses: Complete Guide To Products & Industry-Wide Applications

SEO-optimized for Google, rewritten for <50% similarity, full English version)

PVC compound ranks among the most versatile manufacturing polymers. When PVC resin is blended with targeted functional additives, manufacturers can produce rigid, flexible or transparent grades that serve sectors ranging from construction to medical devices. Understanding how different PVC formulations perform empowers engineers to select optimal raw materials for finished goods.

What Is PVC Compound?

PVC compound is a custom-formulated polymer created by combining PVC base resin with stabilizers, lubricants, plasticizers, fillers, pigments and other processing additives. Its exceptional versatility comes from formulation tuning: minor adjustments to additive ratios can transform the material from high-strength structural pipe to soft, pliable cable jacketing.

The proportion of each ingredient defines final material performance. Plasticizers govern hardness and flexibility, while stabilizers shield the polymer from heat and UV-triggered degradation both during manufacturing and long-term service life.

Core Additives and Their Functions

Each additive in a PVC compound serves a clear purpose:

l Plasticizers soften the material and increase flexibility.

l Stabilizers prevent degradation from heat and UV exposure.

l Lubricants improve flow and ease processing.

l Fillers reduce cost and adjust stiffness.

l Impact modifiers improve toughness in rigid grades.

l Pigments set color and opacity.

Getting this balance right is what separates a general-purpose compound from one engineered for a demanding application.

Main Categories of PVC Compound

PVC compound falls into three broad categories, each suited to different products.

l Rigid PVC compound suits pipes, fittings, profiles, conduits, and sheets that need stiffness, dimensional stability, and structural support.

l Flexible PVC compound suits cables, tubing, hoses, flooring, seals, and soft profiles that need flexibility, abrasion resistance, or sealing performance.

l Transparent PVC compound suits clear tubes, transparent profiles, and display products that demand clarity, low yellowing, and good surface quality.

How PVC Compound Is Processed

The same compound can be shaped through several processes, depending on the product.

l Extrusion produces continuous profiles such as pipes, window frames, cables, and hoses.

l Injection molding forms complex parts like fittings, connectors, and housings.

l Calendering creates flat sheets and films for flooring and wall coverings.

Choosing a compound with the right melt flow and thermal stability for your process is just as important as matching its final properties.

Typical Applications of PVC Compound

PVC compound earns its place in each industry for different reasons. Construction values its weather resistance, electrical applications its insulation, and medical products its purity. The sections below show how the material is applied across industries.

Construction and Building

Building products must survive years of weather and wear, which is why PVC's durability and dimensional stability make it a natural fit.

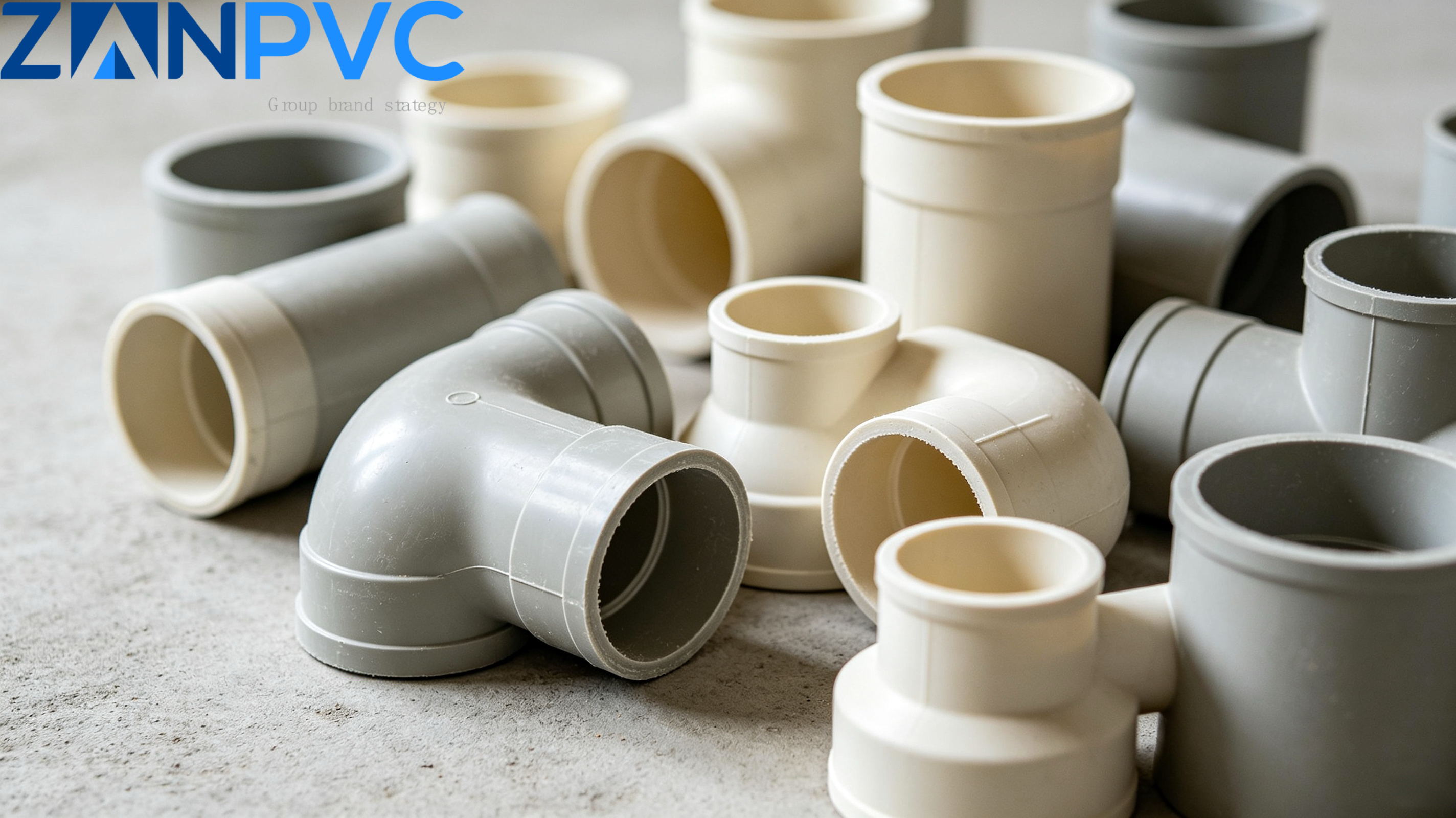

l Pipes and fittings: These handle plumbing, sewage, drainage, and irrigation, so corrosion resistance, rigidity, and long-term durability come first. Most are produced by extrusion for continuous, leak-free lengths.

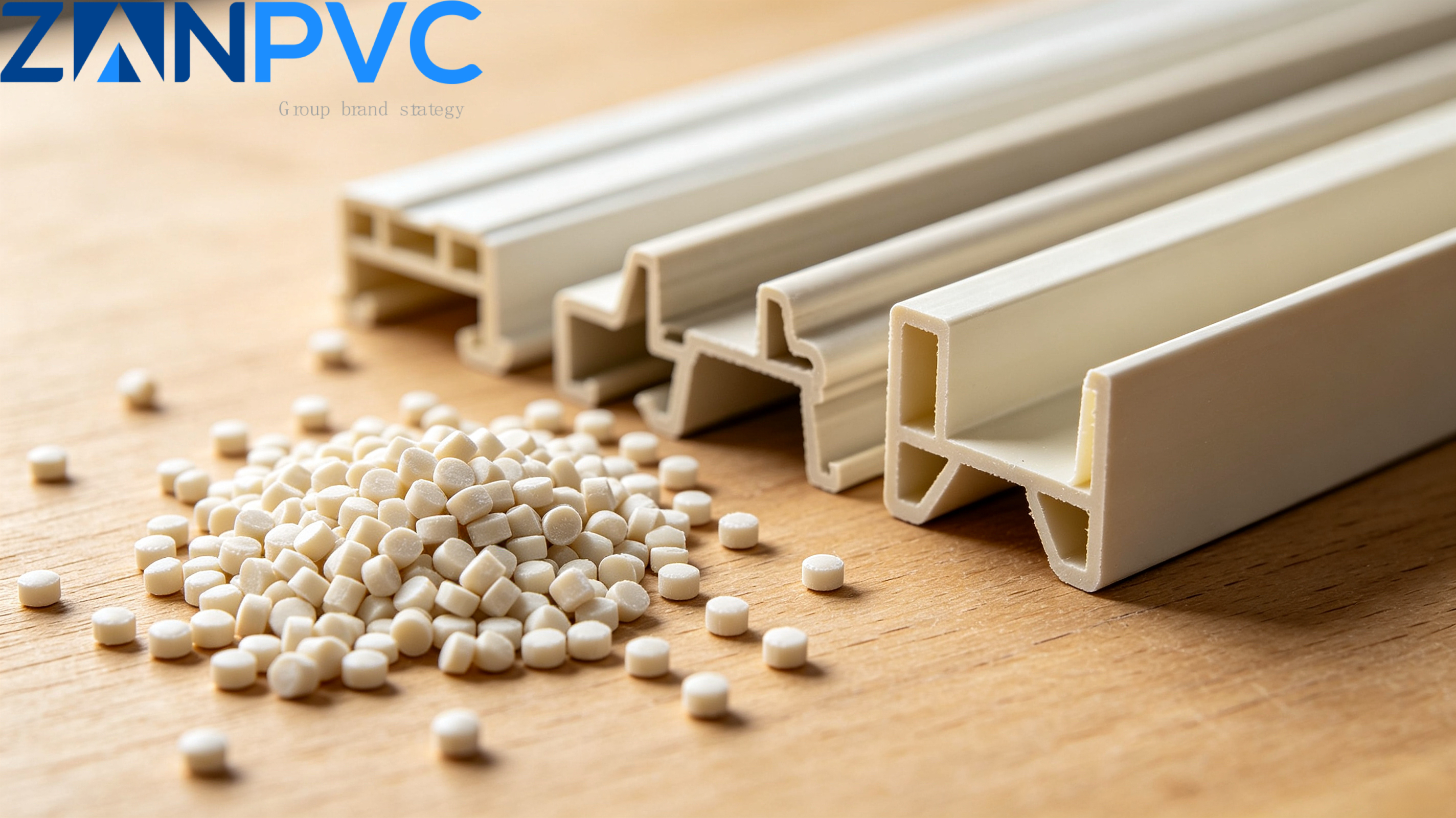

l Profiles and siding: Window frames, door profiles, and wall panels stay outdoors for years, making weather resistance, dimensional stability, and surface quality the priorities.

l Flooring and wall coverings: Vinyl floor tiles and wall coverings need abrasion resistance, water resistance, and a clean appearance that holds up under daily use.

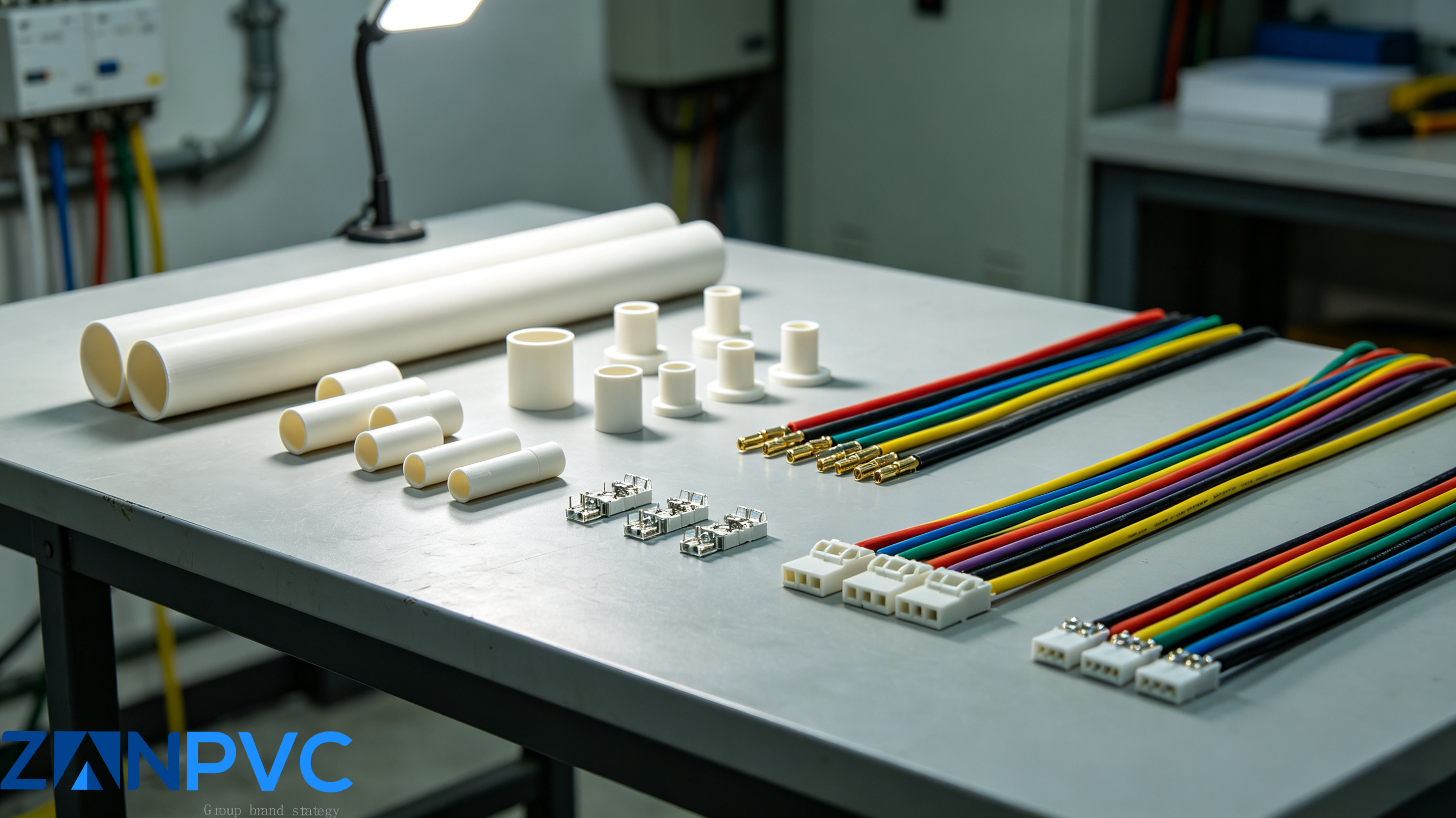

Electrical and Electronics

Electrical applications put insulation and mechanical strength first, and PVC's balance of both makes it a long-standing choice for cable and component makers.

l Cable insulation and jacketing: Wires, power cables, and communication cables rely on good electrical insulation, flexibility, and abrasion resistance to protect conductors and survive bending.

l Conduits and components: Conduits, cable trunking, and electrical housings are chosen for their mechanical strength and consistent insulation performance, with flame-retardant grades available where codes require them.

Automotive and Industrial

Automotive and industrial parts demand durability under constant use, vibration, and temperature change.

l Interior components: Dashboards, door panels, and armrests are specified for abrasion resistance, color stability, and flexibility so they keep their look and feel over the vehicle's life.

l Hoses and seals: Industrial hoses, gaskets, and sealing strips need controlled hardness, pressure resistance, and aging resistance to maintain a tight seal under load.

l Industrial sheets and parts: Protective covers and equipment components emphasize rigidity, chemical resistance, and corrosion resistance in demanding shop-floor environments.

Medical Applications

Medical products demand clean, reliable materials with strict compliance, and PVC's clarity and flexibility support a wide range of single-use devices.

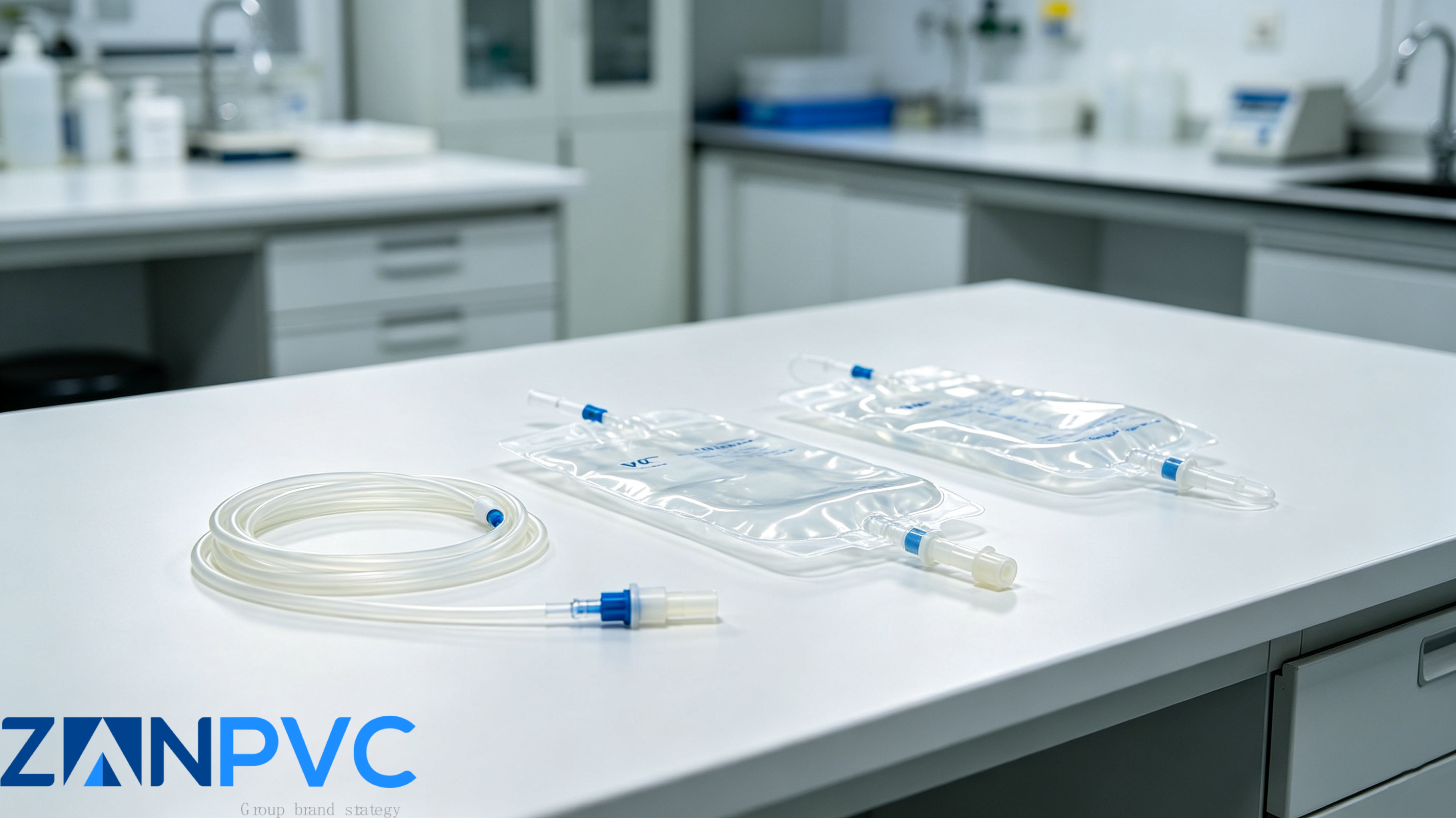

l Medical tubing: IV lines, catheters, and oxygen tubing are chosen for flexibility, transparency, and application-specific performance.

l Medical bags and components: Blood bags, IV bags, and respiratory masks depend on consistent, certified material quality.

Key point: medical use requires medical-grade PVC compound that meets target-market regulations and standards. Standard compound should never be presented as suitable for medical products without proper certification.

Consumer Products and Footwear

Consumer goods balance performance, appearance, and cost, and PVC delivers all three in everyday products.

l Footwear components: Shoe soles and boots are selected for softness, abrasion resistance, and a comfortable feel.

l Household products: Grips, mats, and soft molded parts focus on appearance, flexibility, and durability.

l Packaging and clear products: Clear sheets and blister packaging prioritize transparency, surface quality, and molding performance.

Application Overview

How to Choose the Right PVC Compound

Define the Final Product

Start by naming the product and its function. A pipe, profile, cable, tube, sheet, flooring, seal, medical component, or consumer product each sets a different starting point for the formulation.

Set the Required Properties

Translate the product's needs into measurable specifications.

l Hardness: Choose the Shore hardness that matches the required flexibility.

l Mechanical strength: Define tensile strength and impact resistance for load-bearing parts.

l Appearance: Set clarity, color, and surface quality targets.

l Resistance: Specify chemical, weather, and flame-retardant requirements.

Consider the Operating Environment

The service environment often decides the grade. Indoor parts face different demands than outdoor, underground, wet, or low-temperature products. Chemical contact and medical use add their own strict requirements.

Match the Processing Method

Confirm how the product will be made. Extrusion, injection molding, and calendering each need a compound with the right melt flow and thermal stability, so the grade must suit your process as well as your product.

Confirm Compliance

For regulated markets, check that the compound meets RoHS, REACH, and any industry certifications. Medical products require a certified medical-grade compound.

Select the Compound Type

With the above defined, the choice narrows down.

l Rigid PVC compound: For structural, load-bearing products.

l Flexible PVC compound: For cables, hoses, seals, and soft parts.

Transparent PVC compound: For products that need clarity and surface quality.

Quick Selection by Industry

Conclusion

PVC compound covers nearly every major industrial sector, from construction and electronics to automotive hardware, medical disposables and consumer merchandise. Successful material selection hinges on matching appropriate PVC formulation to your end-product, fabrication process and real-world operating environment.
