PVC Compound for Traffic Cone Production: Complete Guide To Raw Materials & Manufacturing

PVC traffic cones are essential safety devices used worldwide on highways, construction sites, and parking lots. But what makes a high‑quality, durable, and weather‑resistant traffic cone? The answer lies in the PVC compound – a precisely engineered mixture of polyvinyl chloride resin and specialized additives. In this guide, we explore every chemical component that goes into producing a superior PVC traffic cone, and how ZANPVC supplies premium PVC compounds for this demanding application.

Why PVC Compound is the Core of Modern Traffic Cones

A traffic cone must withstand extreme temperatures, UV radiation, repeated impacts, and even vehicle rolls. Ordinary plastics fail quickly under such conditions. A properly formulated PVC compound offers the perfect balance of flexibility, rigidity, and resilience. It can be injection‑molded into the classic cone shape while retaining the ability to bounce back after being crushed – a property known as “elastic memory.”

At ZANPVC, our PVC compounds are tailored specifically for traffic cone manufacturers, ensuring consistent quality and compliance with international safety standards.

Key Components of a PVC Compound for Traffic Cones

Every batch of high‑performance PVC compound contains the following essential ingredients, each playing a critical role.

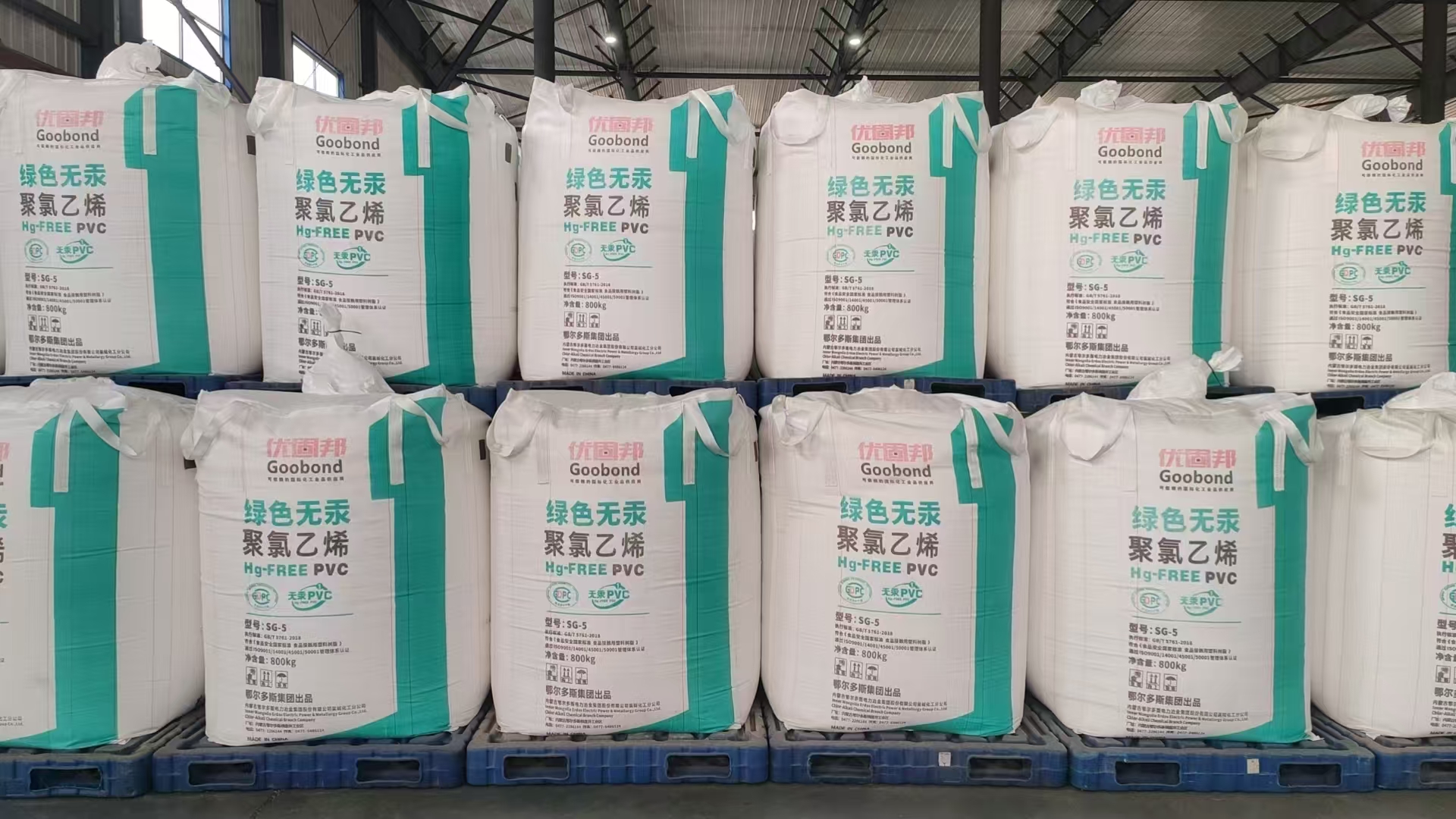

1. PVC Resin – The Structural Backbone

The base of any PVC compound is PVC resin. For traffic cones, manufacturers typically select suspension PVC resin with a K‑value between 67 and 70. This molecular weight range provides:

• Good melt flow for injection molding

• High impact strength after adding modifiers

• Consistent shrinkage control

The PVC resin usually makes up 60–70% of the total compound weight.

2. Heat Stabilizers – Protecting Against Thermal Degradation

PVC begins to degrade at temperatures above 160°C, releasing hydrochloric acid and causing discoloration. During injection molding (which runs at ~180°C), heat stabilizers are mandatory. Modern traffic cone production has largely switched to lead‑free stabilizers due to environmental regulations.

Common choices:

• Calcium‑zinc (Ca/Zn) stabilizers – eco‑friendly, excellent initial color hold

• Organic tin stabilizers – superior transparency and long‑term stability (used for premium cones)

A well‑stabilized PVC compound ensures the cone maintains its mechanical properties even after repeated processing.

3. Plasticizers – Providing Flexibility and Rebound

Pure PVC is rigid and brittle. For a traffic cone to flex under pressure and return to its original shape, plasticizers must be added. These small molecules insert themselves between PVC chains, reducing intermolecular forces and increasing softness.

Typical plasticizers in traffic cone PVC compounds:

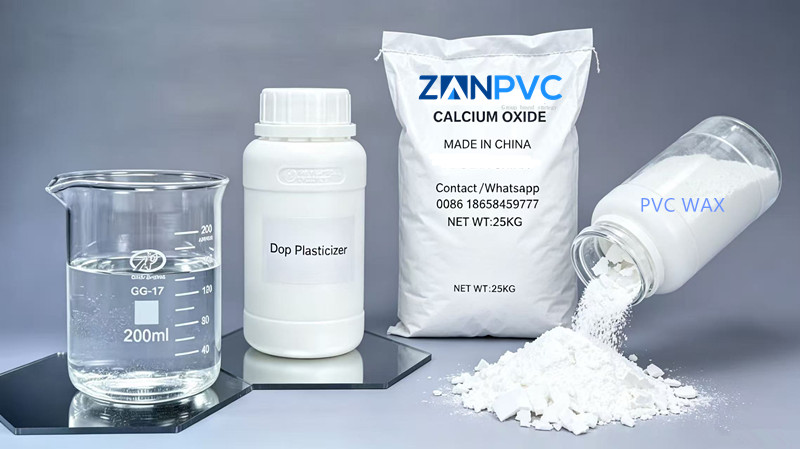

• DOP (Dioctyl Phthalate) – general‑purpose, good balance of cost and performance

• DINP (Diisononyl Phthalate) – lower volatility, better for hot climates

• DOA (Dioctyl Adipate) – excellent low‑temperature flexibility

• Epoxidized soybean oil (ESBO) – acts as both a plasticizer and a co‑stabilizer, eco‑friendly

Plasticizer content typically ranges from 15 to 25 phr (parts per hundred resin). The exact amount determines the cone’s softness and recovery speed – a high‑quality cone should recover within 20 seconds after 180° bending.

4. Impact Modifiers – Boosting Toughness

Traffic cones are frequently struck by vehicles. Without impact modifiers, the cone would shatter on impact. Impact modifiers form a dispersed phase within the PVC matrix that absorbs and dissipates crack‑propagation energy.

Most effective impact modifiers for PVC compounds:

• CPE (Chlorinated Polyethylene) – excellent cost‑performance ratio

• ACR (Acrylic impact modifier) – superior weatherability and outdoor durability

• MBS (Methacrylate‑Butadiene‑Styrene) – good transparency, but less UV resistant

Impact modifiers are added at 2–8 phr. Combined with the right plasticizer level, they produce a cone that can be flattened by a truck tire and still pop back into shape.

5. UV Stabilizers & Light Protectants – Fighting Sun Damage

Outdoor UV radiation is the number one enemy of PVC traffic cones. Without protection, the orange color fades within months, and the surface becomes chalky and brittle. A robust PVC compound incorporates two types of light stabilizers:

• UV absorbers (e.g., benzotriazoles, added 0.3–0.5%) – screen out harmful UV radiation

• HALS (Hindered Amine Light Stabilizers, added 0.1–0.3%) – scavenge free radicals formed by UV exposure

Additionally, titanium dioxide (rutile grade, 2–4 phr) is often added to reflect UV and improve color retention. Together, these additives extend the cone’s outdoor service life to 5–8 years.

6. Fillers – Adjusting Cost and Rigidity

Fillers reduce raw material costs and can improve dimensional stability. Calcium carbonate is the most common filler in traffic cone PVC compounds. It is available in coated or uncoated forms, with particle sizes ranging from 400 to 2500 mesh.

Typical filler loading: 10–25 phr

However, excessive filler reduces flexibility and impact strength. Premium cone manufacturers limit filler content to maintain the “bounce‑back” property.

7. Colorants – Achieving High‑Visibility Orange

Traffic cones must be instantly recognizable. The standard color is high‑visibility orange (RAL 2005 or similar). The PVC compound must contain pigments that are heat‑stable (up to 200°C), lightfast, and non‑migrating.

Traditional pigments:

• Chrome orange (lead chromate) – excellent opacity and weather resistance, but restricted in many regions due to lead content

• Cadmium pigments – very durable, but also increasingly banned

Modern alternatives:

• Mixed metal oxide pigments (e.g., nickel titanate + organic red)

• High‑performance organic pigments (e.g., pyrrole orange)

Many manufacturers combine orange pigment with a small amount of titanium dioxide to achieve a bright, consistent color that does not fade under intense sunlight.

8. Processing Aids – Smooth Injection Molding

To ensure the PVC compound flows evenly into the complex mold cavity (including the cone’s base and the top finial), processing aids are added. Acrylic processing aids (like ACR‑type) promote uniform melting and eliminate surface defects such as sharkskin or melt fracture. They are typically added at 1–2 phr.

The Step‑by‑Step Manufacturing Process Using PVC Compound

Understanding how the PVC compound is turned into a finished traffic cone helps manufacturers appreciate the importance of raw material quality.

Step 1: Weighing & High‑Speed Mixing

All ingredients – PVC resin, plasticizers, stabilizers, impact modifiers, fillers, pigments, and additives – are precisely weighed. They are then fed into a high‑speed mixer. The mixture is heated to 80–120°C by friction, driving off moisture and allowing plasticizers to absorb into the PVC resin. This “dry blend” has a uniform, free‑flowing powder appearance.

Step 2: Compounding & Pelletizing

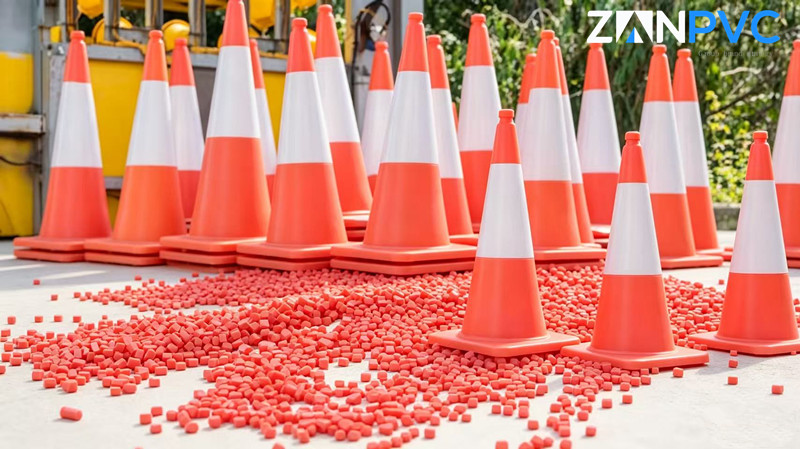

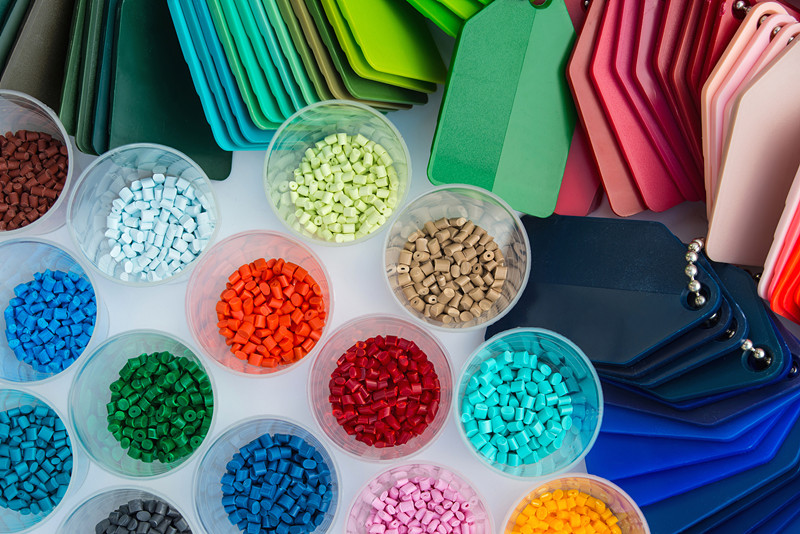

The dry blend is transported to a twin‑screw extruder, where it is melted, homogenized, and degassed. The molten PVC compound is then forced through a die plate and cut into cylindrical pellets (3–4 mm diameter). These pellets – the final PVC compound – are cooled and stored in moisture‑proof bags. This pellet form ensures consistent feeding into injection molding machines.

Step 3: Injection Molding

The PVC compound pellets are gravity‑fed into the hopper of an injection molding machine. The screw rotates, conveying the pellets through three heating zones (160°C → 180°C → 170°C). The fully plasticized melt is injected under high pressure into a water‑cooled mold that forms the traffic cone’s shape. The mold is then held closed under pressure (holding phase) while the part cools and solidifies.

Step 4: Demolding & Deflashing

After cooling (typically 30–90 seconds depending on cone size), the mold opens and the cone is ejected. Any flash (excess material at the parting line or around the base hole) is trimmed off manually or using a deflashing jig.

Step 5: Quality Control & Post‑Processing

Each cone is checked for:

• Color uniformity (no streaks or white spots)

• Dimensional accuracy (height, base width, wall thickness)

• Shore hardness (typically 65–75 Shore A for flexible cones)

• Rebound test: bending 180° and measuring recovery time

Finally, retroreflective collars or sleeves are applied (if required by local standards). The finished cones are stacked and packaged for shipment.

Quality Standards for Traffic Cone PVC Compounds

A professional PVC compound for traffic cones should meet the following performance criteria (based on common international specs like ASTM D7445 or EN 13422):

Why Choose ZANPVC for Your Traffic Cone PVC Compound?

At ZANPVC, we specialize in custom‑formulated PVC compounds for the traffic safety industry. Our advantages include:

• Lead‑free & phthalate‑free options – compliant with REACH, RoHS, and California Prop 65

• Tailored rebound properties – adjust plasticizer and impact modifier levels to match your specific recovery time and hardness needs

• Excellent UV resistance – using high‑efficiency HALS and rutile TiO₂ for 5+ years outdoor color retention

• Consistent pellet geometry – ensures trouble‑free feeding in high‑speed injection molding machines

• Global logistics – we ship to over 30 countries with fast lead times

Our PVC compound for traffic cones has been tested by third‑party laboratories and proven to withstand extreme climates from desert heat to Nordic winter cold.

Conclusion

Producing a durable, high‑visibility PVC traffic cone starts with the right PVC compound. Every ingredient – from the base PVC resin to the stabilizers, plasticizers, impact modifiers, UV protectants, and pigments – must be carefully selected and precisely blended. ZANPVC brings years of compounding expertise to help you manufacture cones that are safe, long‑lasting, and cost‑effective.

Whether you are a traffic cone manufacturer looking for a reliable raw material supplier, or a distributor seeking high‑quality PVC compounds, contact ZANPVC today to request a sample or technical datasheet.
