Custom Modified PVC Compound Pellets | Eco-Friendly Rigid & Flexible PVC Granules

Introduction

 Polyvinyl Chloride (PVC) ranks among the world’s top five mass-produced general-purpose polymers, alongside PE, PP, PS and PET. Pure PVC resin is a rigid, brittle white amorphous powder with limited direct usability. By compounding the base resin with diversified functional additives, manufacturers are able to customize PVC compounds covering ultra-soft flexible grades to high-rigidity rigid variants, as well as transparent, solid color and black masterbatch filled pellets.

 PVC material has always attracted widespread public discussion over environmental safety and health risks throughout its whole industrial chain, covering monomer synthesis, granulation processing, product forming and waste disposal. As a professional custom PVC compound manufacturer, ZANBOND prioritizes source control of raw materials. We exclusively adopt low-toxicity and non-toxic auxiliary agents to formulate pellets, fully complying with the EU REACH regulation, RoHS hazardous substance limits and global food-contact plastic standards. Our ongoing R&D efforts deliver low-VOC, low-odor, low-smoke PVC granular materials that satisfy green manufacturing demands worldwide.

Core Composition of Custom PVC Compounds

 PVC finished pellets are composite blends instead of single pure resin. The final mechanical, thermal, processing and environmental properties are jointly determined by PVC base resin and matched functional additives.

 1. PVC Base Resin

 PVC resin is the foundational raw material, polymerized from vinyl chloride monomer (VCM) via free radical reaction, with the molecular structure of [-CH₂-CHCl-]ₙ. The polymerization degree, ranging from hundreds to thousands of repeating units, directly governs the molecular weight of resin, further deciding tensile strength, impact toughness and melt fluidity during extrusion and injection molding.

 2. Functional Additives for PVC Compounding

 Additive formula is the core competitiveness of customized PVC pellets. All additives are uniformly mixed with PVC powder via high-speed mixing machines, then extruded and cut into uniform granular compound for subsequent calendaring, injection, extrusion and blow molding production. The mainstream additive categories are as follows:

 1. Plasticizers

Plasticizers are the core modifier for soft PVC products, with addition dosage adjustable from 3% to over 60%. Traditional plasticizers are phthalate substances such as DEHP, DINP, DIDP. Restricted by global health and environmental policies, non-phthalate eco-friendly plasticizers are rapidly replacing old formulas, including DOTP terephthalate plasticizer, citrate ester plasticizer and bio-based plasticizer with zero phthalate content.

 2. Heat Stabilizers

Stabilizers are indispensable additives to prevent PVC thermal degradation under high-temperature processing and long-term service. Current eco-friendly mainstream systems include calcium-zinc composite stabilizers for universal use, organotin stabilizers for high-transparency rigid PVC products, plus organic auxiliary stabilizers like epoxides and phosphite esters to boost stability performance.

 3. Fillers

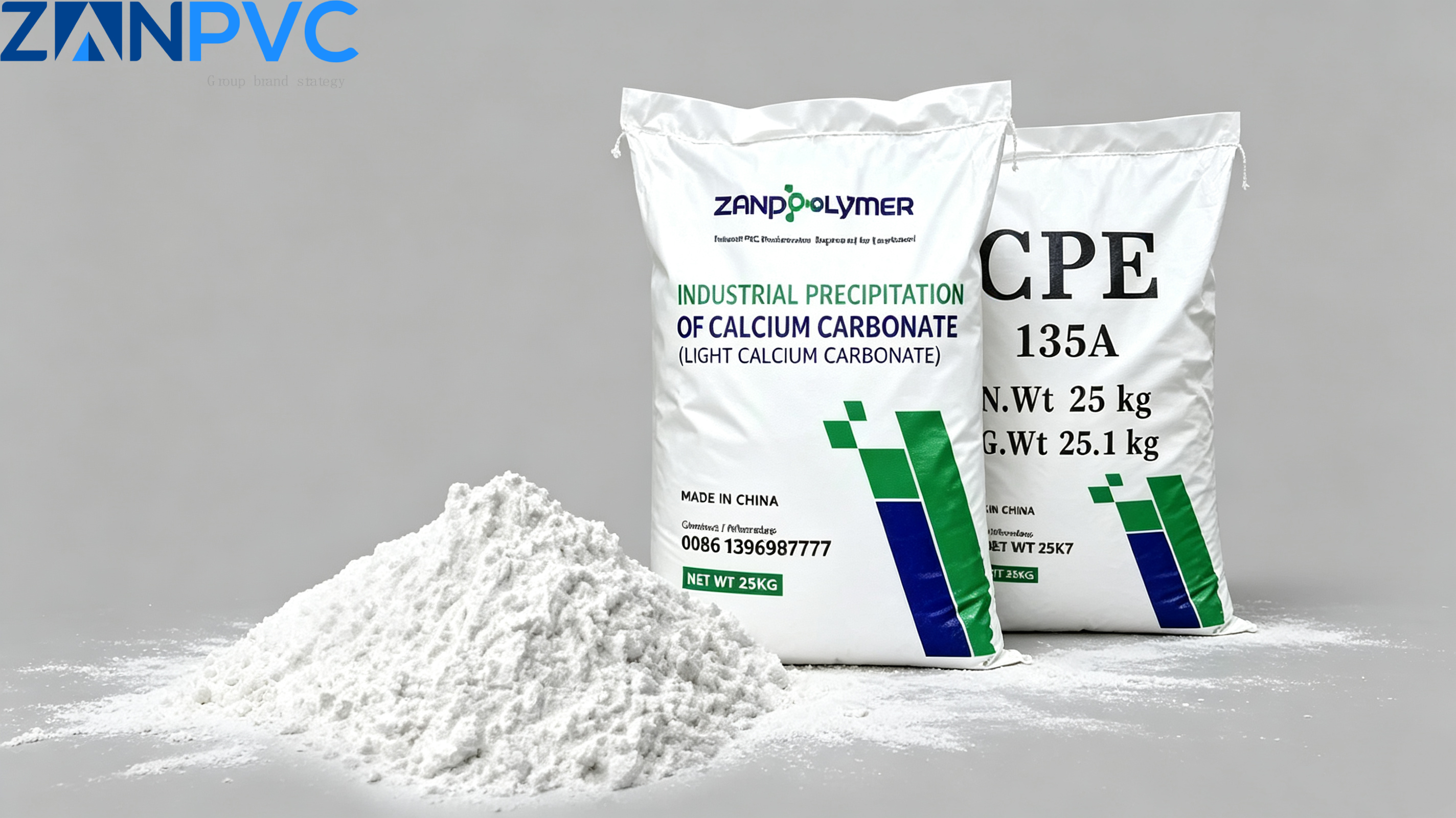

Inorganic fillers cut raw material costs and upgrade product dimensional stability, hardness and rigidity simultaneously. Light calcium carbonate is the most widely used filler; talc, kaolin and silica are also applied to enhance abrasion resistance and tensile performance on demand.

4. Processing Aids

Primarily acrylic copolymers, processing aids accelerate plasticization, optimize melt flow, eliminate melt fracture and create smooth, glossy surfaces on finished plastic goods.

 5. Impact Modifiers

Designed for rigid PVC to avoid brittle cracking under impact. Common varieties include MBS, ACR acrylic impact modifier and CPE chlorinated polyethylene, which greatly improve low-temperature toughness of pipe, profile and sheet PVC.

 6. Internal & External Lubricants

Internal lubricants such as stearic acid reduce friction between PVC molecular chains to smooth melt flow. External lubricants like paraffin wax and PE wax build a separating layer between PVC melt and metal equipment surfaces, avoiding sticking and simplifying demolding.

 7. Other Functional Additives

Pigments and color masterbatch for color matching; flame retardants for wire, construction and fire-resistant plastic goods; UV absorbers & light stabilizers for outdoor PVC products to resist aging; biocides to inhibit bacterial and mold growth.

VCM Vinyl Chloride Monomer’s Industrial Value

 VCM is the single monomer for PVC polymerization, a colorless gas under normal temperature and pressure with a special ether-like odor. It acts as the vital connection point between basic chemical industry and polymer material manufacturing, being an irreplaceable core raw material of the entire PVC industry chain.

 This image illustrates how custom PVC compound pellets can be formulated for different application requirements, including flame-retardant grades for wire and cable insulation, flexible medical tubing, and high-performance industrial plastic products.

Main Application Fields of Custom PVC Pellets

Customized PVC compound pellets cover rigid, semi-rigid and flexible grades, transparent and opaque specifications, serving as essential raw materials for dozens of core industries:

1. Construction Industry (Largest Consumption Field)

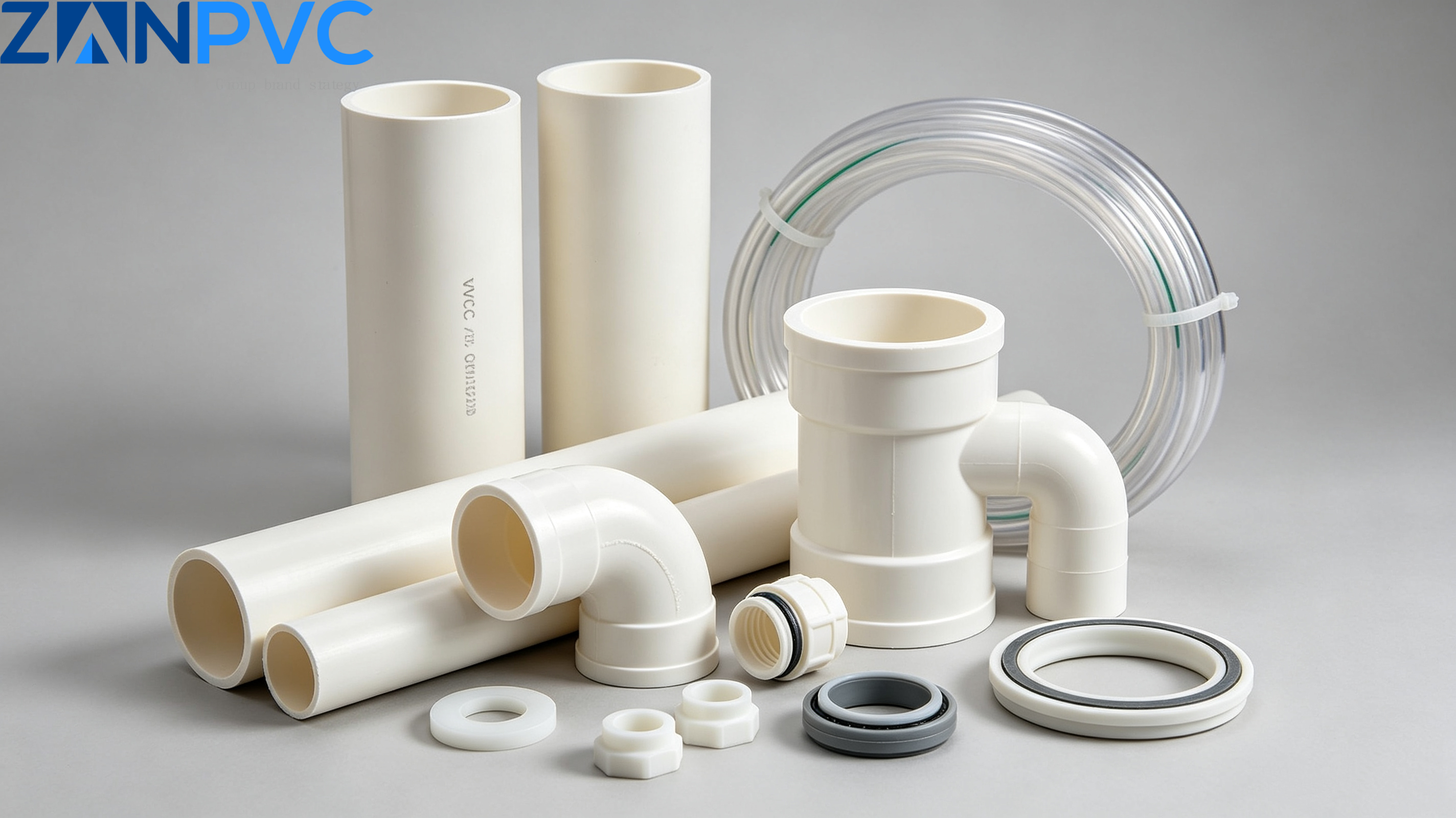

 Accounting for more than half of global PVC consumption. Key products: water supply & drainage plastic pipe systems, door and window plastic profiles, floor leather, waterproof coiled materials, exterior wall decorative panels.

 2. Medical & Pharmaceutical Industry

Medical-grade low-toxic PVC pellets feature high transparency, softness and sterilization resistance under ethylene oxide and gamma radiation. Used for infusion bags, blood storage bags, medical catheters, disposable examination gloves, drug packaging blister films.

 3. Electric Wire & Cable Industry

PVC possesses natural self-extinguishing flame resistance and outstanding insulation performance with high dielectric strength and volume resistivity. It is widely used for wire insulation layers and outer sheath to guarantee the safe operation of power and communication circuits.

 4. Daily Consumer Goods & Packaging Industry

PVC pellets are ubiquitous in consumer products: food packaging film, artificial leather, identity cards, inflatable toys, raincoats, waterproof fabrics, plastic ornaments and household injection molded parts.

 Conclusion

 Custom modified PVC compound pellets realize flexible performance adjustment through formula design, striking a balance between cost, processability, safety and functionality. As environmental regulations grow stricter around the globe, low-toxic, phthalate-free, low-VOC green PVC formulas become the mainstream development direction of the industry. ZANBOND continuously optimizes eco-friendly PVC granule solutions to provide stable, customized raw material support for global manufacturers in construction, medical, cable and consumer plastic sectors.
